Part Number: H-250WS

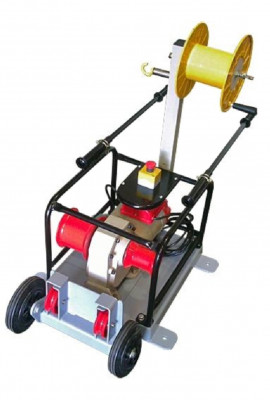

WinchSystems H-2500

  • 110v, 220v-240v x 1ph AC
  • Dual pulling capacities of 2,500 (Small drum) and 1,500kg (Large drum)
  • Designed to tackle the toughest wall, ground and underground pulling applications
  • 2.5 m/min Line pull (Small drum) and 4.0 m/min (Large drum)
  • Hypoid gear plus spur gears
  • Overload protection switch
  • Electromagnetic failsafe brake
  • Heavy duty industrial bearings
  • Rugged, high power motor

The H-2500 is Bespoke manufactured by Winch Systems and has been used for over 7 years.

The Cable Puller offers a ready solution for installation of cable in open tray or trench and ducts

The combination of two capstan drums provides dual speed and pulling power for efficient handling of different weights and lengths of cable.

Compact, Lightweight and portable – easy to store , transport and manoeuvre into position.

Unlimited length of pull – Capstan Drums.

Interchangeable storage reels – neatly store pulled rope.

Ideal for enclosed environments – no fumes

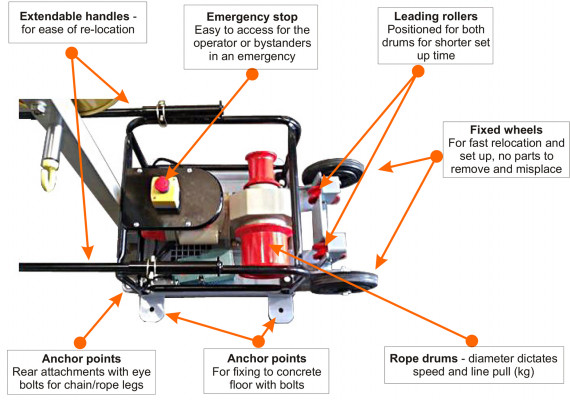

Benefits of the WS H-2500 over our competitors' versions:

- 2 handles for easier transportation and balance

- 2 fixed leading rollers so you do not have to remove the wheels and make adjustments when changing from one drum to another.

- The front wheels are fixed so they are sturdy and secure with no chance of them coming loose.

- Emergency stop easily visible and accessible in case of emergency.

Pulling Capacity:

Large Drum  1500kg               Small Drum  2500kg

Rope Speed:

Large Drum  4 m/min             Small Drum  2.5 m/min

Duty Cycle:  25%

Motor Rating:  IP44

Please click here to see roller accessories
