Part Number:

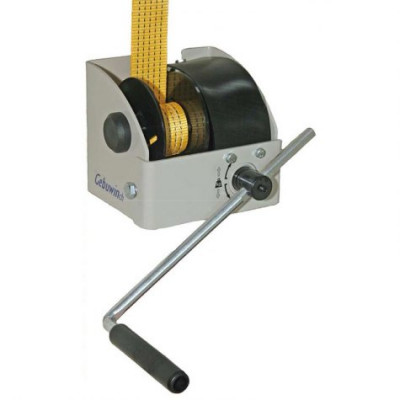

Gebuwin WB 750 Webbing Belt Hand Winch

  • Robust and safe hoisting and pulling winch
  • Thin webbing belt instead of cable makes the winch very compact
  • Winch is included with 4 m belt and a hook
  • Belt exit to the top, bottom or through the backplate
  • Square worm-worm-wheel transmission and maintenance free bearing
  • Adjustable crank, with ergonomic plastic grip
  • Easy to grease worm-worm-wheel transmission
  • Load pressure brake with quiet double ratchet system
  • Painted or zinc-plated finish
  • Pulling capacity is approx. 2.5x hoisting capacity
  • Static safety factor of 4

The Gebuwin hand driven worm gear winch is known for its robust and compact construction. The hoisting capacity of the winch is calculated according to the first belt layer around the drum.

The WB 750 winch has a rear exit, which also enables it to be used as a pulling winch.  As pulling winch, a load of up to approx. 2000kg can be moved horizontally.

The worm gear winch is fitted with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The crank can be adjusted in length and is recoil-free. All rotating parts run in maintenance free bearings. This winch is available in a grey/black paint and a zinc plated version, which gives an improved rust protection.
