Part Number: 682546

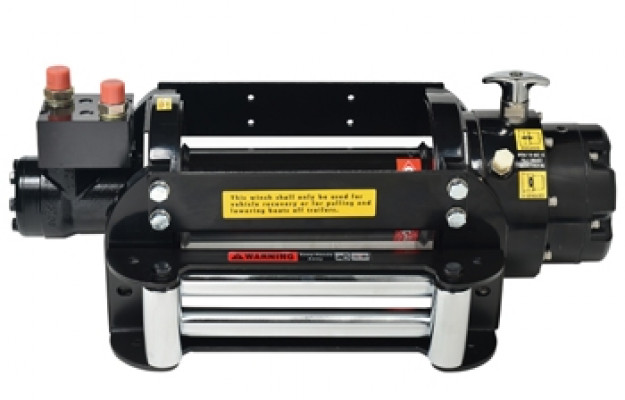

COMEUP HV10

• 10,000Ib / 4,535kg (SAE J706 rating) OR 4,300kg (EN14492-1 rating)
• Hydraulic winch with option for clutch on left or right hand side
• 14 m/min Line pull
• 11mm x 27m Wire rope w/breaking strength of 84.4kN
• 150bar / 2,175psi Operating Pressure
• Powered by a PTO/power take off unit driven pump
• Drag brake and over center valve providing complete braking
• 2 stage planetary gear train for greater pulling force
