Part Number: 753140 / 753150

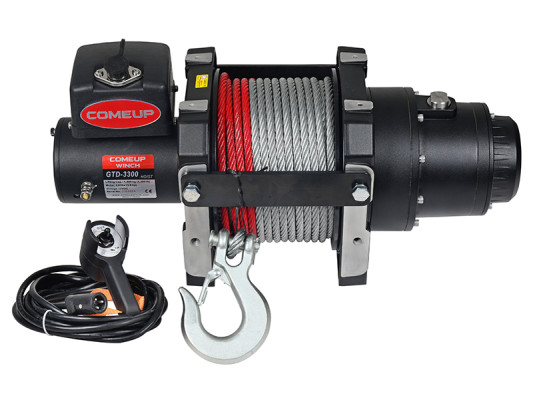

COMEUP GTD3300

• 3300lb / 1500kg Hoist
• Mechanical cone brake and permanent motor dynamic brakes together
• Rope size: 9.5 mm x 26.5 m (3/8" x 87
• Line Speed: 12v 4.8 mpm / 15.7 fpm 60A at no load
• Line Speed: 12v 3.6 mpm / 11.8 fpm 200A at full load
• Line Speed: 24v 6.0 mpm / 19.7 fpm 40A at no load
• Line Speed: 24v 4.4 mpm / 14.4 fpm 130A at full load
• 12v Motor: 2,830 w / 3.8 hp permanent magnet
• 24v Motor: 1,940 w / 2.6 hp permanent magnet
